G114 Series Bellows Sealing Valve
G154 Series Bellows Control Valve

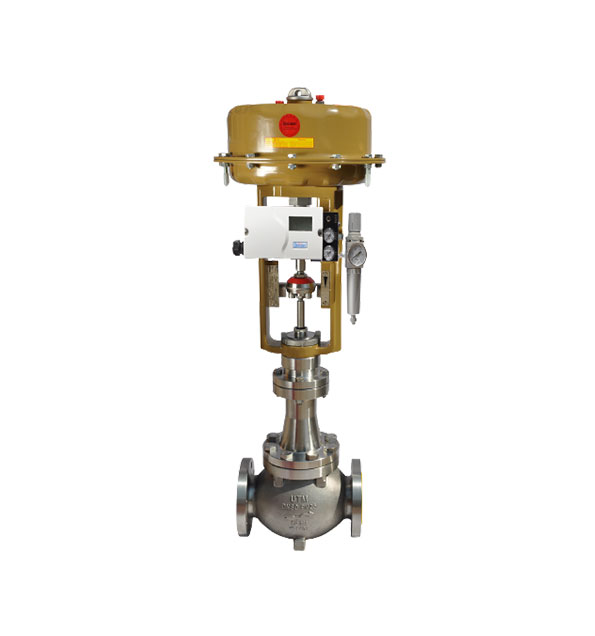

G114/G115 Series China Bellows Control Valve

The bellows control valve is a pressure-balanced control valve with compact body structure, S streamlined fluid passage, low-pressure drop loss, large flow rate and wide adjustable range.

Bellows control valve due to the deformability of the bellows element itself and outstanding aging resistance, this bellows control valve control valve completely overcomes the weaknesses of packing aging and temperature sensitivity that usually exist in packing seal valves. Secondly, the double sealing structure of bellows and packing is adopted, which has better safety and reliability. Therefore, bellows control valve is widely used in automatic control systems for rare and special media such as highly toxic, highly corrosive, and radioactive media. Contact our china valve supplier now!

Technical Data Sheet of G114 and G154 Series Bellows Sealing Control Valve

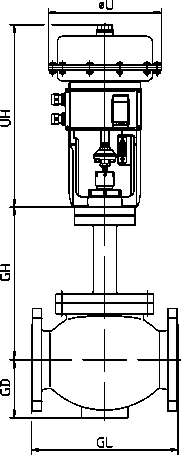

Weights and Dimensions of G154 Series Bellows Sealing Control Valve

Weights and dimensions of G154 Series Bellows Sealing Control Valve



Dimensions (in mm) for valve c/w flanges acc. to DIN EN 1092-1 or ANSI Class 600/900/1500 RF/RTJ
G154 seriesANSI NPS25405080100150200
1"1%"2U3“4"6“8“
GL PN63/100/160230260300380430550700
GLPN250260300350450520700800
GL Class 600 RF216251292355.6431.8558.8660
GL Class 600 RTJ216.5251295358.8435562663
GL Class 900 RF254305368381457.2609.6736.6
GL Class 900 RTJ254305372384460.4612.8739.8
GL Class 1500 RF254305368470546705832
GL Class 1500 RTJ254305372473549711.5842
DEK4on request
Actuator Type
UT/U7A
0UUTI270
UTII400-
UTIII-400
UTA598596
UHUTI361
UTII489-
UTIII-625
UTA1100840.3
UHVUTI497
UTII652-
UTIII-848
Weight* ca. kgUTI3442-
UTII596797126161-
UTIII6472102131166322612
UTA204212242271306462752

*)Weight: Actuator weight without hand wheel
