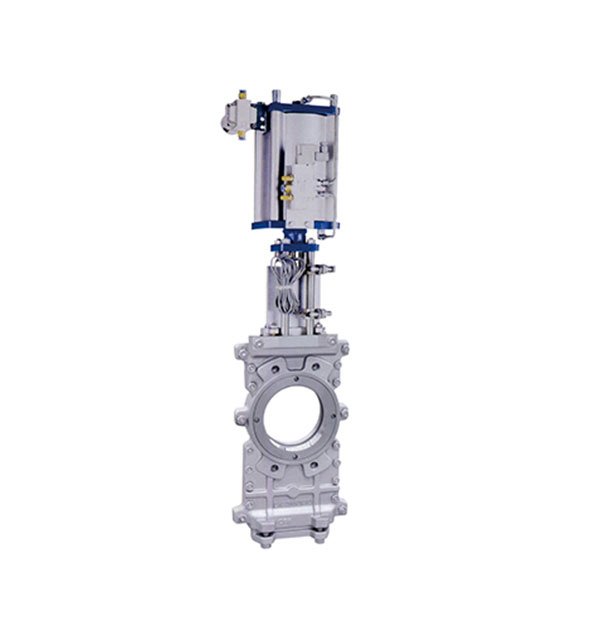

Pneumatic Knife Gate Valve

UTMOST is a pneumatic knife gate valve manufacturer, pneumatic knife gate valve supplier and exporter of pneumatic knife gate valves in China. We have a team of experienced china valve engineers who have been committed to manufacturing air actuated knife gate valves that are easy to use, safe and fast to operate. The stainless steel gate prevents sealing leakage caused by lame corrosion. Suitable for slurry, powder and granular materials, fibers, and other difficult to control fluids, widely used in paper, petroleum, chemical, drainage, food, and other industries.

Main Technical Parameters of Pneumatic Knife Gate Valve

  • Valve design and manufacturing: JB/T8691, GB/T12224

  • The structural length of the valve: GB/T12221

  • Flange connection size: GB/T9113, HG/T20592

  • Valve Inspection and testing: GB/T13927, MSSP SP-61

  • Electric drive device connection size: JBT 8530

  • The operating temperature of the air-operated knife gate valve depends on the sealing type and valve material.



Pneumatic Knife Gate Valve Working Performance

The pneumatic knife gate valve has the advantages of simple and compact structure, reasonable design, light and material saving, reliable sealing, light and flexible operation, small size, smooth passage, small flow resistance, lightweight, easy installation, easy disassembly, etc. This actuated knife gate valve can work at a working pressure of 1.0MPa -2.5MPa, normal work under the operating temperature of -29- 425C. The pneumatic knife edge gate valve has a shearing function, which can scrape off the adhesion on the sealing surface and automatically remove the debris. The stainless steel gate of the pneumatic operated gate valve can prevent seal leakage caused by corrosion.

Pneumatic Knife Gate Valve Datas

Material & Performance Specifications of Pneumatic Knife Gate Valve Main Parts

Main Connection Dimensions of Pneumatic Knife Gate Valve

Material of Air Operated Knife Gate Valve Main Parts

Valve body, bonnetGateStemSealing ring
Stainless steel, carbon steel, gray cast ironCarbon steel, stainless steelStainless steelRubber, PTFE, stainless steel, cemented carbide


Knife Gate Valve Pneumatic Main Performance Specifications


Nominal pressure PNShell test (MPa)Seal test (MPa)Operating temperatureApplicable medium
11.51.1Rubber≤80°C
PTFE seal≤180°C
Hard seal≤425°C
Pulp, sewage, coal, ash, slag water mixture

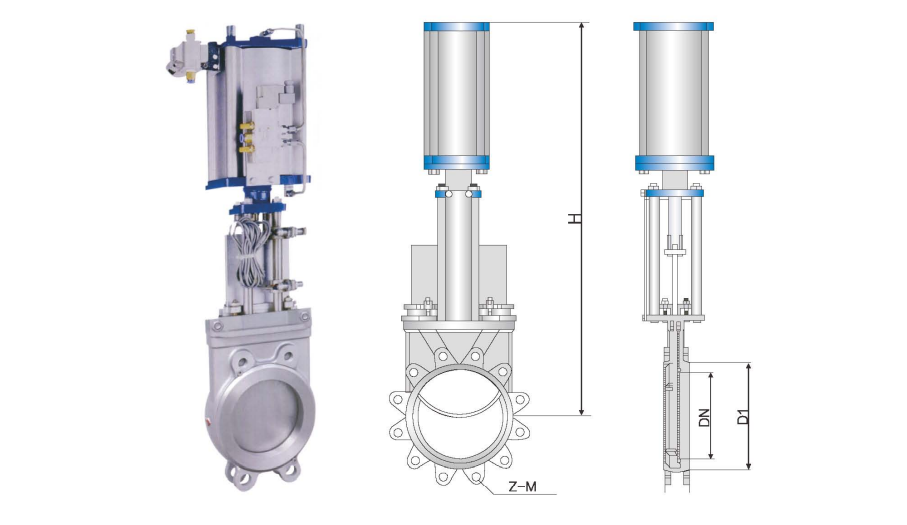

Main Connection Dimensions of Pneumatic Knife Gate Valve



Nominal pressureDNLD1D2HZ-M
1.0MPa50481001253354-M16
65481201453654-M16
80501351603954-M16
100501551804658-M16
125571852105308-M18
150602102406308-M20
200602652957508-M20
2507032035090012-M20
30076368400112012-M20
35076428460126016-M20
40089482515145016-M22
45089532565160020-M22
500114585620180020-M22
600114685725230020-M27
700127800840250024-M27
800127898950280024-M30
90015410051050310028-M30
100016511151160340028-M30
120019013251380360032-M36
