Size: 1/2'' ～ 10''
Pressure: PN16-40 / ANSI 150-300
Body material: Carbon steel, Stainless steel or others
Trim materials: Stainless steel (std.)
End connections: Flanged
Size: 1/2'' ～ 10''
Pressure: PN63-250 / ANSI 600-1500
Body material: Carbon steel, Stainless steel, or others
Trim materials: Stainless steel (std.)
End connections: Flanged
Size: 1/2'' ～ 10''
Pressure: PN250-400 / ANSI 1500-2500
Body material: Carbon steel, Stainless steel, or others
Trim materials: Stainless steel (std.)
End connections: Flanged

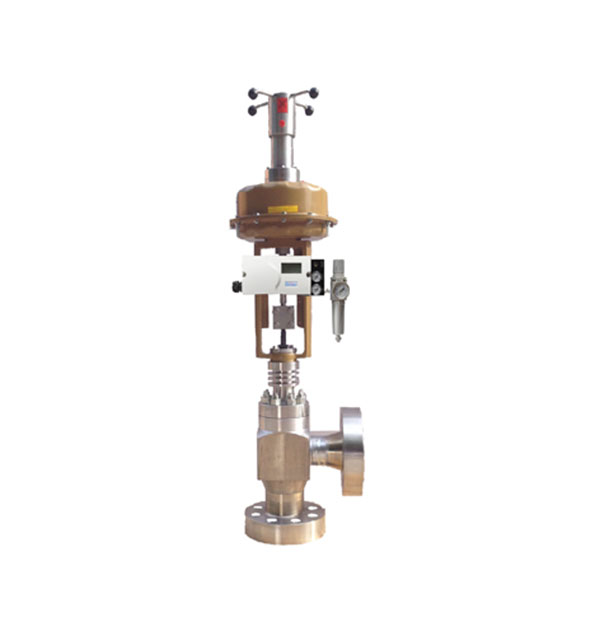

The angle control valve has the same structure as the single-seat valve except the angle regulating valve is angle type. The characteristics of angle type control valve determine that its flow path is simple that compared with different types of flow control valves, the resistance is small, and it is especially conducive to high-pressure drop, high viscosity, and contains suspended solids and particulate matter. Fluid regulation. The angle regulating valve can avoid the occurrence of coking, adhesion, and blockage, and it is also easy to clean and self-clean. Contact our control valve manufacturing company for more information!

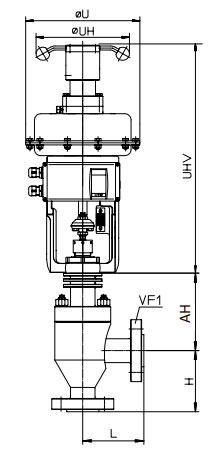

| DN | 1'' | 2'' | 3'' | 4'' | 6'' | 8'' | 10'' | |
| AH | on request | |||||||
| L | ANSI 150 | 70 | 102 | 121 | 146 | 203 | 248 | 311 |
| ANSI 300 | 102 | 133 | 159 | 178 | 222 | 279 | 311 | |
| ANSI 600 | 108 | 146 | 178 | 216 | 279 | 330 | 394 | |
| ANSI 900 | 127 | 184 | 190 | 229 | 305 | 368 | 419 | |
| ANSI 1500 | 127 | 184 | 235 | 273 | 353 | 416 | 495 | |
| ANSI 2500 | 154 | 226 | 289 | 337 | 457 | 511 | 635 | |
| H | ANSI 150 | 70 | 102 | 121 | 146 | 203 | 248 | 311 |
| ANSI 300 | 102 | 133 | 159 | 178 | 222 | 279 | 311 | |
| ANSI 600 | 108 | 146 | 178 | 216 | 279 | 330 | 394 | |
| ANSI 900 | 127 | 184 | 190 | 229 | 305 | 368 | 419 | |
| ANSI 1500 | 127 | 184 | 235 | 273 | 353 | 416 | 495 | |
| ANSI 2500 | 154 | 226 | 289 | 337 | 457 | 511 | 635 | |
