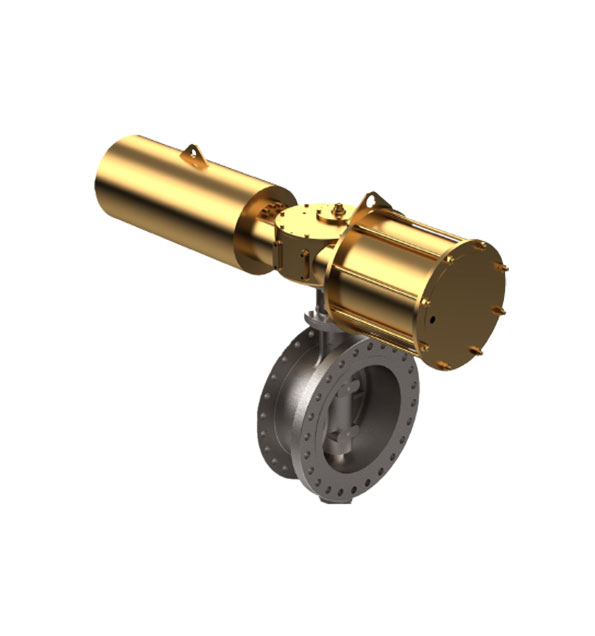

Eccentric Butterfly Valve

In contrast with the concentric butterfly valve, a butterfly valve whose stem axis deviates from the center of the disc and the center of the body at the same time, and the sealing pair is an oblique vertebra, is called an eccentric butterfly valve. As one of the professional eccentric butterfly valve manufacturers, our single eccentric butterfly valve designed with durability in focus has achieved great success in the butterfly valve wholesale market characterized by high quality and affordable prices.

Eccentric Butterfly Valve Design Datas

Eccentric Disc Butterfly Valve Technical Specification

Size2"~48"(DN50~DN1200) larger sizes upon request
PressureClass ANSI #150~900, PN10, PN100
Body materialCarbon steel, stainless steel, alloy steel, duplex steel, etc.
Standard complianceISO 5752, BS5155, API 609, MSS-SP-68, ASME B16.10, ASME B16.5, DIN3202.
End connectionsFlanged Ends OR WAFER, LUG, BW
Operationmanual, pneumatic, electric, or others
SealsNBR, EPDM, VITON, PTFE or metal seat, etc.
