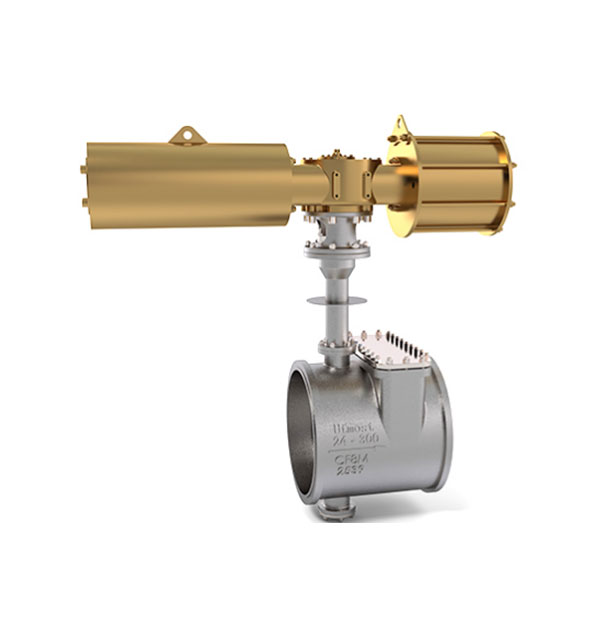

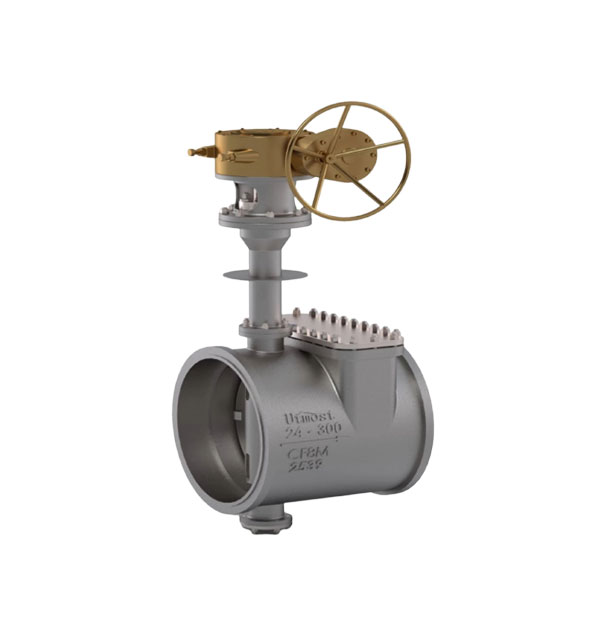

Cryogenic Butterfly Valve

The cryogenic butterfly valve has outstanding advantages such as reliable sealing, small opening, and closing torque, high low-temperature stability, and long service life. The actuator of this butterfly valve adopts worm gear, pneumatic, electric, hydraulic, and other driving methods. The cryogenic butterfly valve is widely used in liquefied natural gas, air separation, and other low-temperature industries. We also provide fluorine lined butterfly valve, soft seal butterfly valve and more products for sale. Contact us now!

Cryogenic Butterfly Valve Technical Specification

Size: 6"~48"(DN150~DN1200) larger sizes upon request

Pressure: Class ANSI #150~600, PN20~PN110

Temp.: -196℃~80℃

Standard compliance: ISO 5752, BS5155, API 609, MSS-SP-68, ASME B16.10, ASME B16.5, DIN3202.

End connections: Flanged Ends

Operation: manual, pneumatic, electric, or other

Cryogenic butterfly valve body material: low temp. carbon steel, stainless steel, and alloy steel, etc.



Performance Parameter of Cryogenic Butterfly Valve

Nominal diameter: NPS 4″-NPS48″

Nominal pressure: CL150lb~CL900lb

Medium temperature: -196~120℃

Connection: Flanged RF

Body material: CF8, CF8M, CF3M, etc.

Trim material: 304, 316, 316L, etc.

Leakage level: IV
