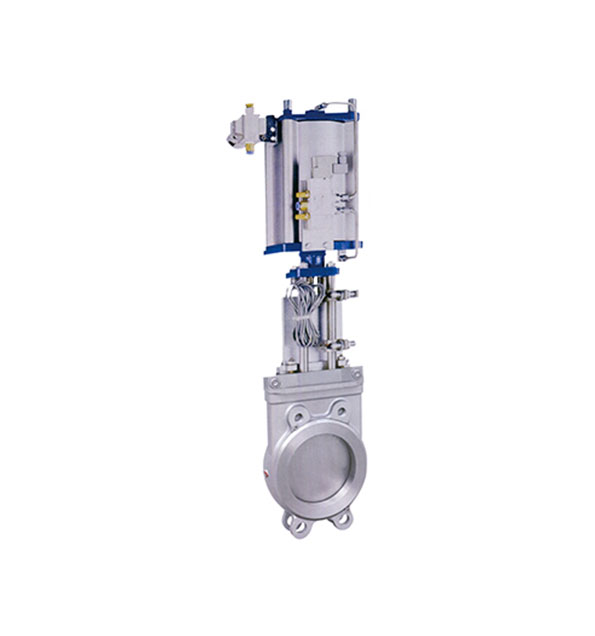

Pneumatic Penetration Insert Valve

The pneumatic penetration insert valve is simple in structure, flexible in operation, light in weight, no jamming, especially suitable for all kinds of non-viscous solids, grain materials, and flow regulation, installation is not limited by the angle, easy to operate, can adjust the opening degree at any time. Mainly used in papermaking, building materials, metallurgy, mining, electric power, chemical industry, glass, light industry, food, and other industries such as the top of the warehouse, the bottom of the warehouse, and import and export. This electric knife gate valve is the ideal equipment to adapt to the control flow changes, start frequently, and can be quickly cut off.

Working Performance of Pneumatic Penetration Insert Valve

The electric or pneumatic plug valve is usually used in conjunction with the metal seal butterfly valve. The valve control systems are opened and closed by the valve seat top opening mechanism (hydraulic cylinder) and the valve plate walking mechanism (hydraulic motor), for example, the valve plate is set up through-hole seat and blind hole seat. The valve plate through-hole seat and blind hole seat switch by the top open (loosen the valve plate) → valve plate transverse movement → clamping (valve plate sealing vice to achieve sealing) and other actions to complete, so as to achieve the opening and closing of the valve. The valve seat opening mechanism and the valve plate moving mechanism of the electric insert valve are driven by electric devices.

Pneumatic Penetration Knife Gate Valve Datas

Material & Performance Specifications of Pneumatic Penetration Knife Gate Valve Main Parts

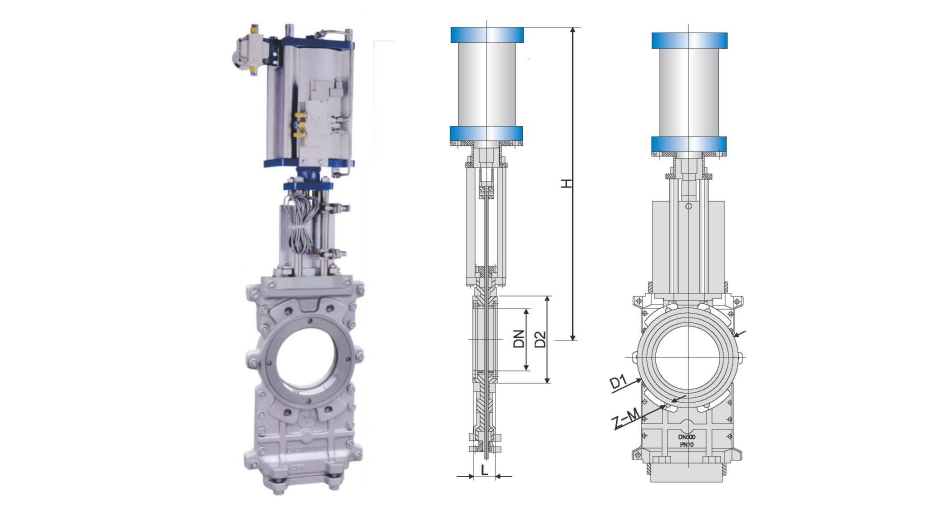

Main Connection Dimensions of Pneumatic Penetration Knife Gate Valve

Material of Main Parts

Valve body, bonnetValve seatGateFillerSealing ring
1Cr18Ni9Ti,CF8M,CF8
CF3M,CF3,WCB
A105,304,304L316,316L1Cr18Ni9Ti,CF8M,CF8
CF3M,CF3,2CF13
PTFFPTFF, Alloy seal



Main Performance Specifications

Nominal pressure PNShell test (MPa)Seal test (MPa)Operating temperatureApplicable medium
11.51.1Rubber≤80°C
PTFE seal≤l80°C Hard
seal≤425°C
Pulp, sewage, coal ash, slag water mixture


Main Connection Dimensions of Knife Gate Valve



Nominal pressureDNLD1D2HZ-M(m)
1.0MPa80501601325568-M16100
100501801566048-M16100
125502101847038-M16150
150602402118628-M20160
200702952669548-M20200
25070350319110312-M20200
30076400370118412-M20200
35078460430158216-M20200
40082515482166816-M24250
45088565532193520-M24320
50090620585203020-M24320
600110725685223020-M27320
