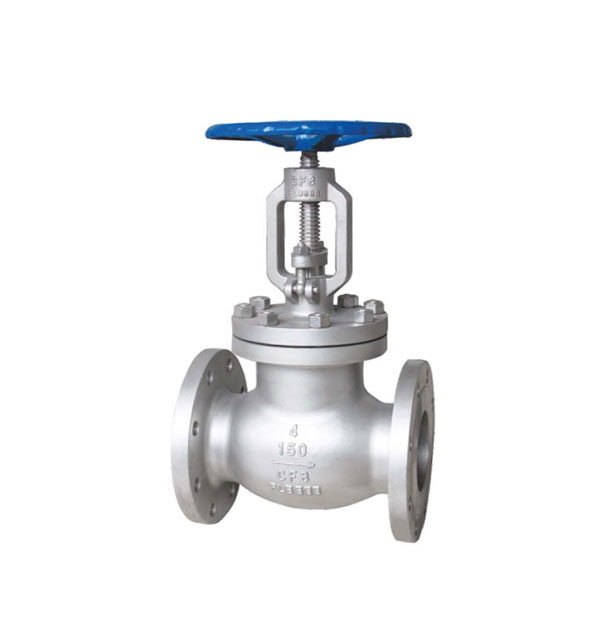

Globe Valve

UTMOST, as one of the most professional globe valve suppliers in China, sticks to providing high performance pneumatic actuator globe valves of different sizes and materials. A full selection of globe valve materials including carbon steel, stainless steel, heat resisting steel, alloy steel. Inconel, Monel, and Hastelloy alloy are on offer; actuators are both on electric and pneumatic options; And the inside nominal diameter ranges between DN15(l/2") and DN1200(48"), with nominal pressure from PN16(ANSI150) to PN400(ANSI2500), connection type included NPT/FF/RF/RTJ. If you want to customize your group valve, please contact us for more detailed globe valve cost and customization services.

Globe Valve for Sale

A globe valve is a valve in which the closing member (valve flap) moves along the centerline of the valve seat. According to this form of movement of the valve flap, the change of  different types of globe valves seat opening is proportional to the stroke of the valve flap. Due to the relatively short opening or closing stroke of the valve stem and the very reliable cut-off function of this type of automated globe valve, and because the change of the valve seat opening is in a king proportional relationship with the stroke of the valve flap, it is ideal for the regulation of the flow. Therefore, this type of valve is ideal for use as a cut-off or regulating and throttling valve. UTMOS is a high pressure globe valves manufacturer and valve factory in China that offers various types of globe valves for sale. Contact us to get the globe valve price now.



Globe Valve Characteristics

Globe valve is suitable for cutting off or connecting pipeline media in various working conditions in petroleum, chemical, pharmaceutical, fertilizer, and electric power industries with nominal pressure PN1.6~16.0MPa and working temperature ≤600°℃. Its main structural features are as follows:

  • The product structure is reasonable, has reliable sealing, excellent globe valve operation performance, beautiful shape.

  • Co-based hard alloy is overlaid on the sealing surface, with good wear resistance, corrosion resistance, and anti-scuffing performance, and long service life.

  • The stem is tempered and surface nitride treated, with good corrosion resistance and anti-scuffing.

  • The nominal pressure 225.0MPa(Class1500) middle cavity adopts a self-tightening seal type structure, the sealing performance is enhanced with the increase of pressure to ensure the sealing performance.

  • The valve globe type is equipped with an inverted sealing structure for reliable sealing.

  • The globe valve material of parts and the globe valve sizes of flange and butt welding end can be reasonably matched according to the actual working condition or user requirements to meet various engineering needs.


Globe Valve Datas

Materials of Globe Valve Main Parts

Main Connection Dimensions of Globe Valve

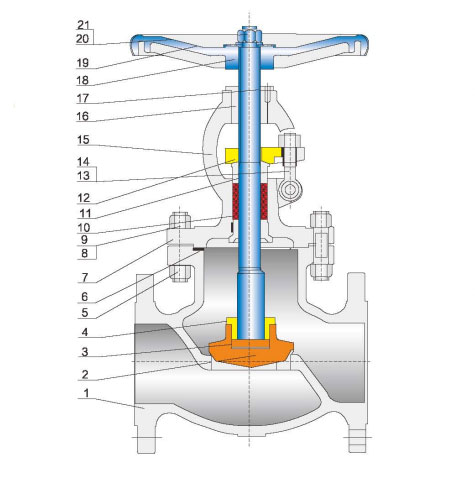

Materials of Globe Valve Main Parts



No.Parts NameMaterial
Stainless SteelCast Steel
1BodyA351-CF8A216-WCB
2DiscA182-F3042Cr13
3stemA182-F304A182-6a
4Disc coverA182-F3042Cr13
5Spiral wound gasketPTHEgraphite+304
6The seal seatF3042Cr13
7Valve coverA351-CF8A216-WCB
8BoltA193-B8A193-B7
9nutA194-8A194-2H
10PackingPTFEgraphite
11Press kit packingCF82Cr13
12Packing plateCF8A216-WCB
13nutA194-8A194-2H
14Pin41035
15BoltA193-B7A193-B7
16stem nutZCuA110Fe3ZCuA110Fe3
17Screw410A105
18HandwheelQT400QT400
19NameplateL2L2
20nutB8A194-2H
21Washer410Q235A


Main Connection Dimensions of Globe Valve



CLASS150Lb

NPS1/23/4111/411/2221/2345681012
DN1520253240506580100125150200250300
RF108117127140165203216241292356406495622698
RTJ119130140152178216229254305369419508635711
BW108117127140165203216241292356406495622698
d13192532385164276102127152203254305
H182193217235258330360390445480520600773880
H1----------556658805955
W100100100135135200250280300350350400450500
W1----------310310460460
H.W34589192736537594148242438
G.O----------126180291480
