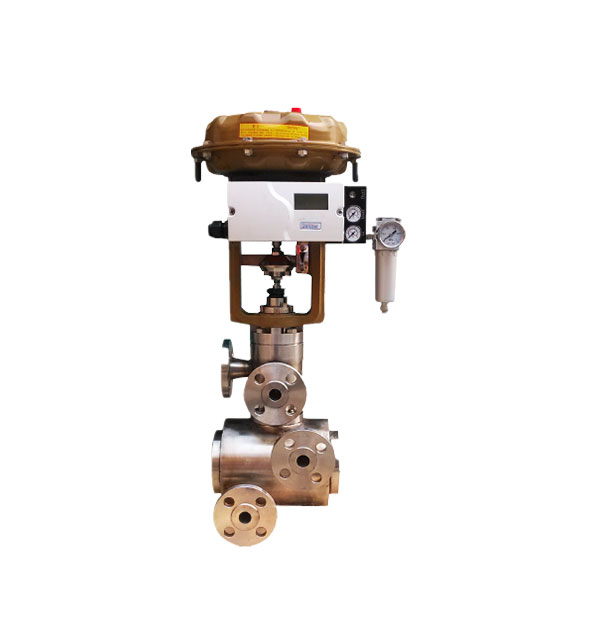

G110/G114/G150 Series Jacketed Control Valve

The heat preservation regulating valve is suitable for occasions requiring heat preservation. When the crystallization temperature of the process medium is lower than the ambient temperature or the fluid temperature is lowered, which causes the viscosity to increase or the fluid to solidify, add steam heat preservation and magnetic clamping devices at the automated control valve body and upper valve cover. To make the process go on as required. The leakage of the regulating valve complies with the ANSI B16.104 standard. The regulating valve is equipped with a multi-spring diaphragm actuator, which has a compact structure and a large output force.

Technical Data of Jackets Control Valve

Weights and Dimensions of G110 Series Jacketed Control Valve

Weights and Dimensions of G114 Series Jacketed Control Valve

Weights and Dimensions of G150 Series Jacketed Control Valve

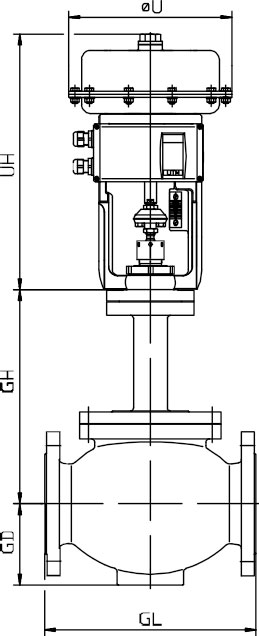

Weights and Dimensions of G110 Series Jacketed Control Valve



G110 seriesDN
ANSI NPS
15
1/2''
20
3/4''
25
1''
32
-
40
1 1/2''
50
2''
65
-
80
3''
100
4''
GL PN10-PN40130150160180200230290310350
GL Class 150 RF177.8181184.1-222.2254290298.4352.5
GL Class 150 RTJ--193.6-231.7263.5-307.9362
GL Class 300 RF190.5193.6196.8-234.9266.7290317.5368.3
GL Class 300 RTJ198203.1206.3-244.3279.3-330.1381
DEK4228233365389
GD47.658.7561.97077.882.5595107137
Actuator Type UTØUUT I270-
UT II400
UT III-400
UHUT I361-
UT II489
UT III618625
UHVUT I497-
UT II652
UT III-848
Weight* ca. kgUT I202223243133417093
UT II4547484956586695118
UT III50525354616371100123

*) Weight: Actuator weight without hand wheel

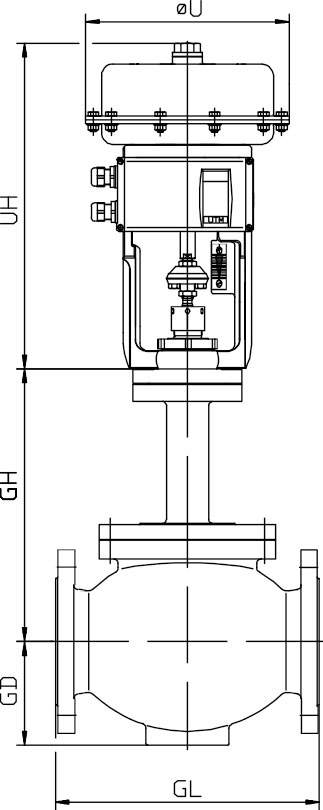

Weights and Dimensions of G114 Series Jacketed Control Valve



G114 seriesDN
ANSI NPS
150
6''
200
8''
250
10''
300
12''
350
14''
400
16''
500
20''
GL PN10-PN4048060073085098011001250
GL Class 150 RF450.854367373788910161250
GL Class 150 RTJ460.3553682.5744898.51025-
GL Class 300 RF473568.470877792710571250
GL Class 300 RTJ485.6581720.6785939.6--
DEK45756058508508801069-
GD189239305335395443540
Actuator Type UT/UTAØUUT III400--
UTA596
UHUT III625-
UTA840.3988.31580
UHVUT III848-
Weight* ca. kgUT III200260-
UTA34040046076085015001800

*) Weight: Actuator weight without hand wheel

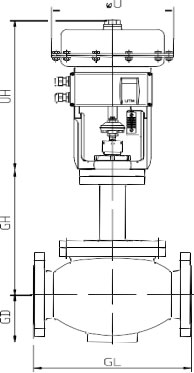

Weights and Dimensions of G150 Series Jacketed Control Valve



Dimensions (in mm) for valve c/w flanges acc. to DIN EN 1092-1 or ANSI Class 600/900/1500 RF/RTJ
G150 seriesDN
ANSI NPS
25
1“
40
1%"
50
2“
80
3“
100
4"
150
6“
200
8“
GL PN63/100/160230260300380430550700
GLPN250260300350450520700800
GL Class 600 RF216251292355.6431.8558.8660
GL Class 600 RTJ216.5251295358.8435562663
GL Class 900 RF254305368381457.2609.6736.6
GL Class 900 RTJ254305372384460.4612.8739.8
GL Class 1500 RF254305368470546705832
GL Class 1500 RTJ254305372473549711.5842
DEK4**on request
Actuator Type UT/UTA0UUTI270-
UTII400-
UTIII-400
UTA598596
UHUTI361-
UTII489-
UTIII-625
UTA1100840.3
UHVUTI497-
UTII652-
UTIII-848
Weight* ca. kgUTI3442-
UTII596797126161-
UTIII6472102131166322612
UTA204212242271306462752

*) Weight: Actuator weight without hand wheel
